Casting Ready Bypass Heart Pendant CAD Model | STL

Description

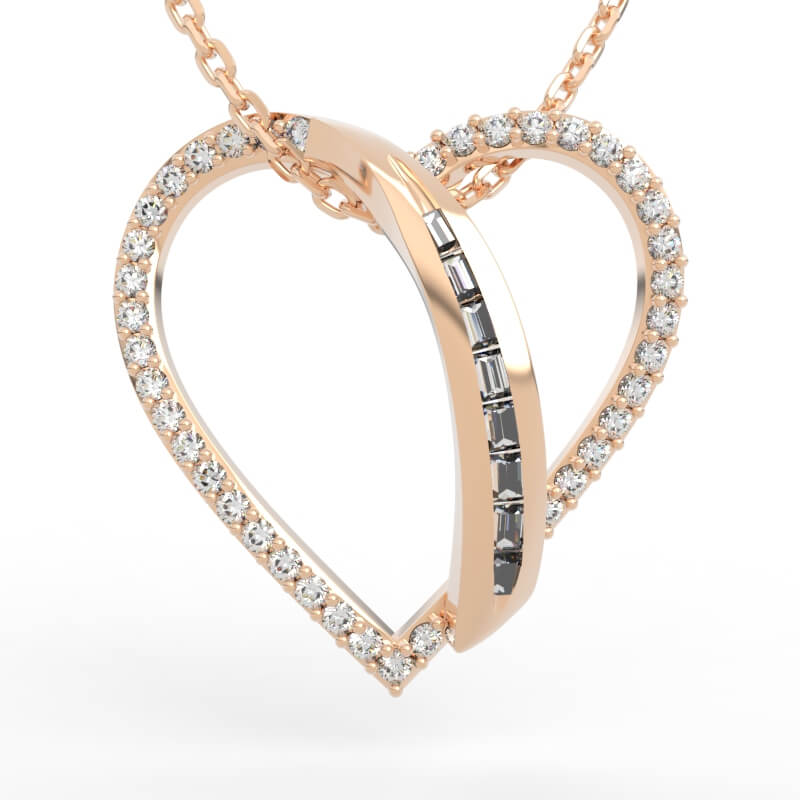

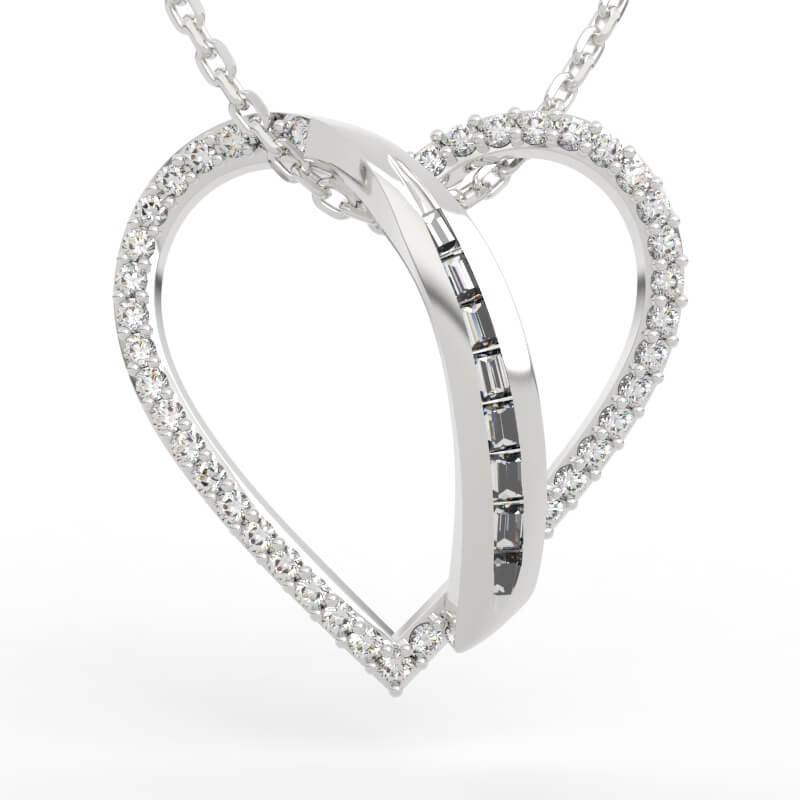

Round Diamond Bypass Heart Pendant STL File

This bypass heart pendant CAD file pairs a continuous round diamond pavé border with a diagonal graduated baguette channel. The interlocking double-heart outline keeps a thin 5.44 mm (0.21″) profile suited to efficient wax printing and casting.

The bypass heart pendant CAD file is delivered production ready, with consistent geometry across 10K–22K gold, platinum, and silver builds for multi-SKU factory output. Channel-set baguette sizing is pre-graduated for direct stone-fitting during setting.

Production Analysis

• Casting Readiness: Ready for direct casting; clean bypass geometry with defined channel structure
• Stone Setting Difficulty: Medium-high — graduated baguette channel plus round pavé border
• Polishing Accessibility: Medium; open double-heart frame allows standard polishing access
• Mass Production Suitability: High — repeatable geometry supports consistent multi-alloy runs
• Recommended Metals: 10K–18K Gold (YG/WG/RG), Platinum (PLAT/PLAT RU), 925 Silver

Market Fit Analysis

• US Market Fit: Strong; heart pendant structure aligns with everyday-wear and gifting demand
• Etsy Compatibility: Strong; bypass heart silhouette suits personalized-gift listings
• TikTok Jewelry Potential: Moderate; distinctive bypass structure suits short-form product video
• Pinterest Visual Appeal: Strong; clean geometric silhouette performs well in saved-pin discovery
• Commercial Flexibility: High — 13-alloy production range supports broad price-tier SKU expansion

Baguette Diamond Heart Pendant 3D Model – Specifications

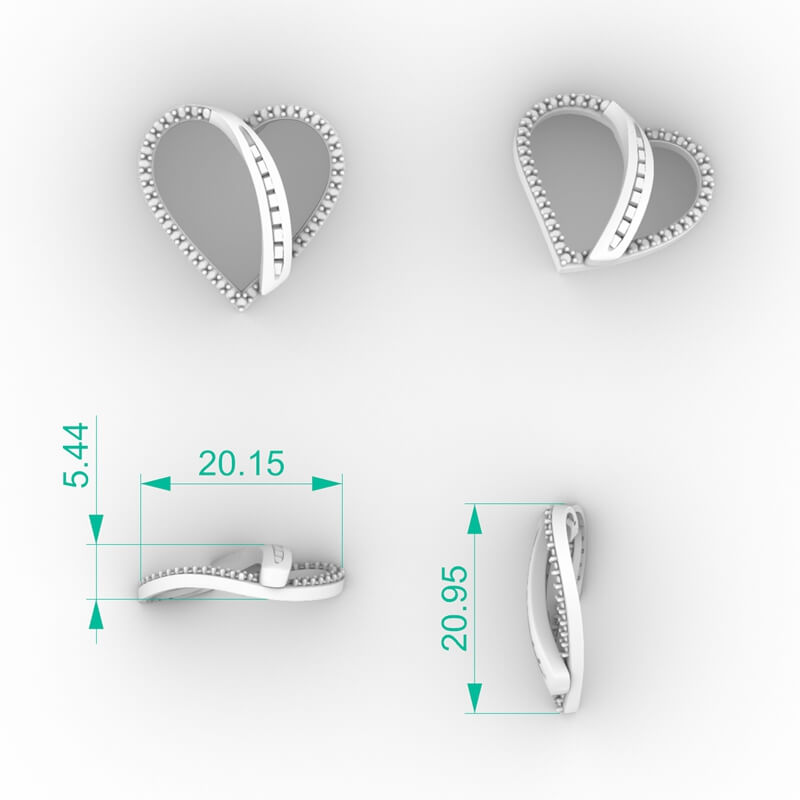

Dimensions	20.15 mm (0.79″) W x 20.95 mm (0.82″) H x 5.44 mm (0.21″) D

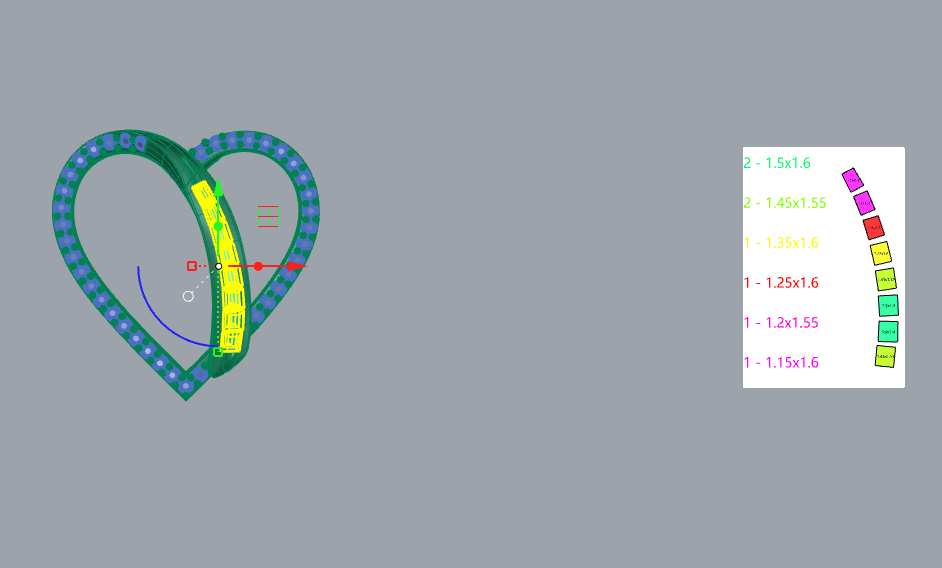

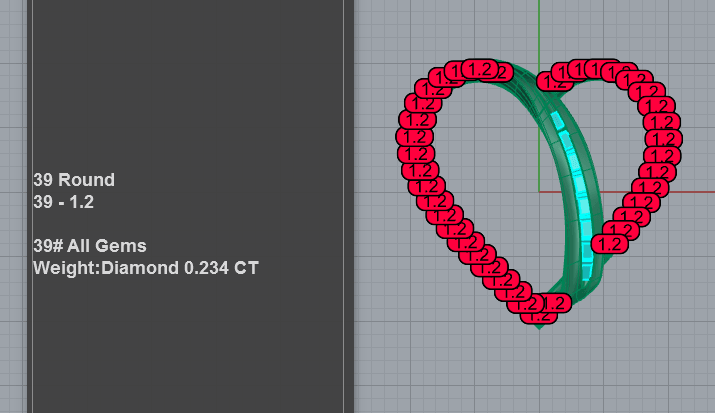

Stone Details	Diamond, 39 Round (1.2mm) pavé border + 8 graduated Baguette (1.15mm–1.6mm) channel stones, Total Diamond Weight 0.234 CT (round stones)

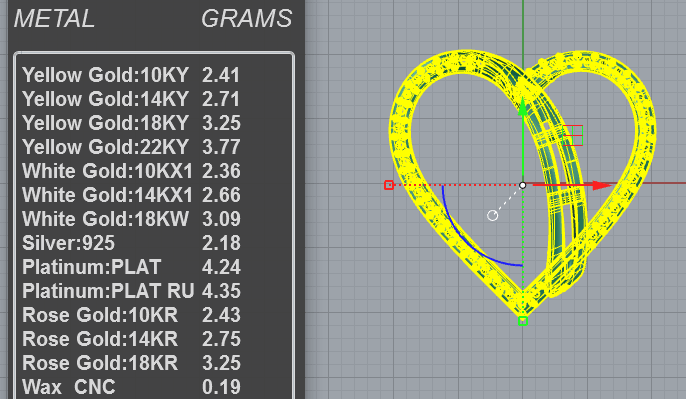

Metal Weight	10K Gold (YG/WG/RG): 2.41g / 2.36g / 2.43g 14K Gold (YG/WG/RG): 2.71g / 2.66g / 2.75g 18K Gold (YG/WG/RG): 3.25g / 3.09g / 3.25g 22K Gold (YG): 3.77g Platinum (PLAT/PLAT RU): 4.24g / 4.35g 925 Silver: 2.18g
Wax Weight	0.19g (manufacturing reference only)
File Formats	3DM, STL, JCD
Compatible Software	Rhino 7+, JewelCAD 5.x

Jewelry Costing: Calculate Costs with our Jewelry calculator.

FAQ

Q: Is the graduated baguette channel practical for factory-scale setting?
A: Yes. The baguette sizes are pre-graduated in the CAD file, allowing consistent stone fitting without custom resizing during setting.

Q: Can this bypass heart pendant CAD file be produced in multiple metals from one file?
A: Yes. The geometry is production ready across 10K–22K gold, platinum, and silver, with weight data provided for each alloy.

Q: Is a baguette diamond heart pendant 3D model suitable for wax printing?
A: Yes. The 5.44 mm profile and open frame structure support standard resin or wax printing workflows for casting.
