Interlocking Double Heart Pendant CAD | Casting Ready

Description

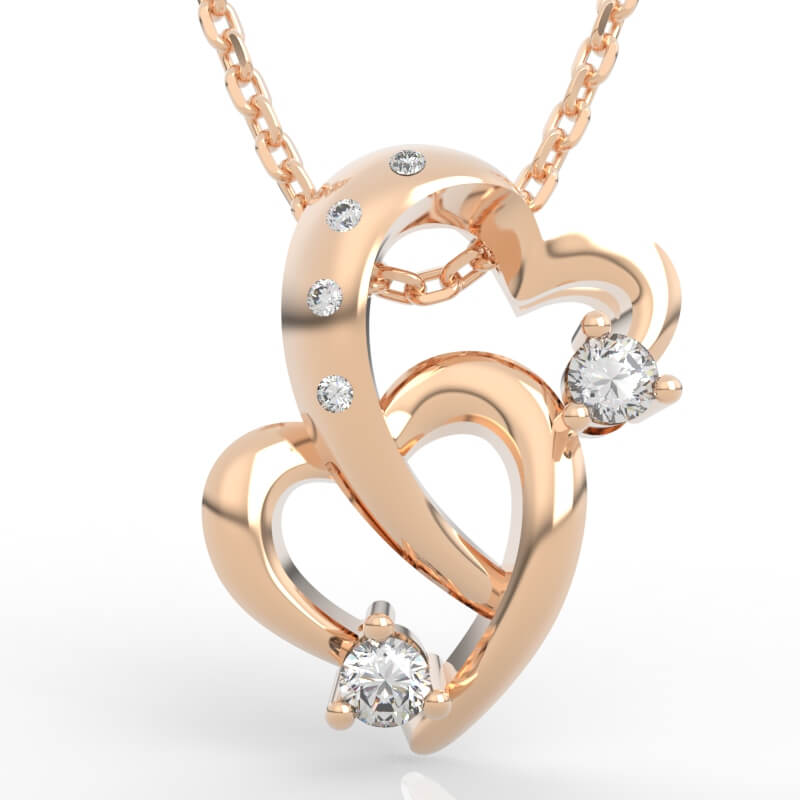

This interlocking double heart pendant CAD model features two open ribbon hearts joined in a flowing asymmetric curve, accented by a bezel-set diamond trail along the upper heart. The smooth ribbon geometry supports a casting ready double heart pendant build with no fine undercuts to clean up.

The compact 13.17 mm (0.52″) frame and open structure keep metal usage low across all 13 alloy options, from 10K to 22K gold, platinum, and 925 silver. The two prong-set accent stones can be substituted with colored gemstones for birthstone or personalized SKU variations.

Diamond Trail Double Heart Pendant 3D Model

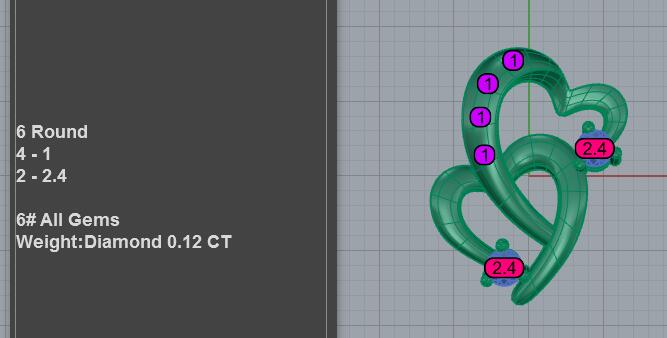

The 3D model places four 1 mm bezel-set diamonds along the upper heart curve and two 2.4 mm prong-set accent stones at the lower heart points, totaling 0.12 CT. Bezel and prong settings are positioned for straightforward stone-setting access across production runs.

Production Analysis

• Casting Readiness: Ready — smooth ribbon geometry with no fine undercuts
• Stone Setting Difficulty: Low — small bezel trail stones and two simple prong accents
• Polishing Accessibility: High — open curved surfaces are easily accessible
• Mass Production Suitability: High
• Recommended Metals: 10K Gold (YG/WG/RG), 14K Gold (YG/WG/RG), 925 Silver

Market Fit Analysis

• US Market Fit: Strong — fashion-forward double heart pendants suit everyday and gifting markets
• Etsy Compatibility: Strong — accent stone customization supports personalized listings
• TikTok Jewelry Potential: Strong
• Pinterest Visual Appeal: Strong
• Commercial Flexibility: High — supports multi-metal and accent stone SKU expansion

Product Specifications

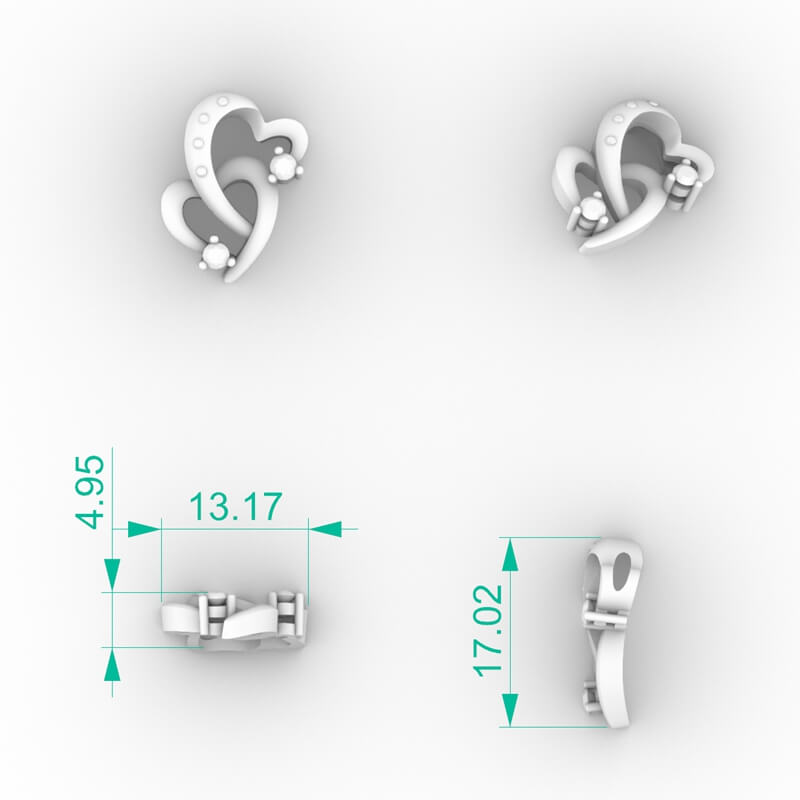

Dimensions	13.17 mm (0.52″) x 17.02 mm (0.67″) x 4.95 mm (0.19″)
Stone Details	Diamond, 6 stones (Round), 1 mm–2.4 mm, 0.12 CT total

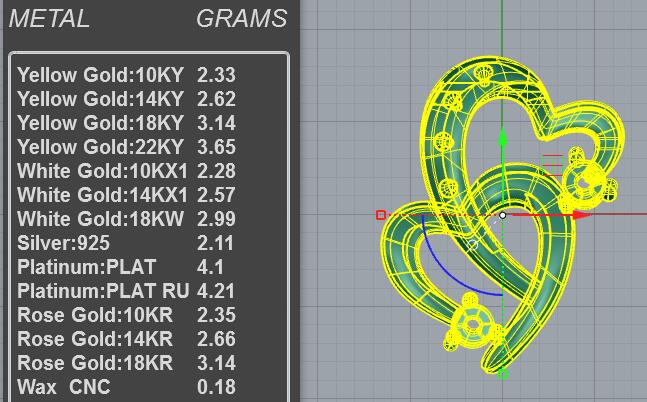

Metal Weight	10K Gold (YG/WG/RG): 2.33g / 2.28g / 2.35g 14K Gold (YG/WG/RG): 2.62g / 2.57g / 2.66g 18K Gold (YG/WG/RG): 3.14g / 2.99g / 3.14g 22K Gold (YG): 3.65g Platinum (PLAT/PLAT RU): 4.1g / 4.21g 925 Silver: 2.11g
Wax Weight	0.18g (manufacturing reference only)
File Formats	3DM, STL, JCD
Compatible Software	Rhino 7+, JewelCAD 5.x

Jewelry Costing: Calculate Costs with our Jewelry calculator.

FAQ

Q: Is the bezel-set diamond trail durable enough for production runs?
A: Yes. The bezel settings fully enclose each small trail stone, keeping them secure through casting, polishing, and everyday wear.

Q: Can this design be produced from a single interlocking heart pendant STL file across multiple metals?
A: Yes. The interlocking heart pendant STL file supports direct wax printing and casting in any of the 13 listed metal options without modification.

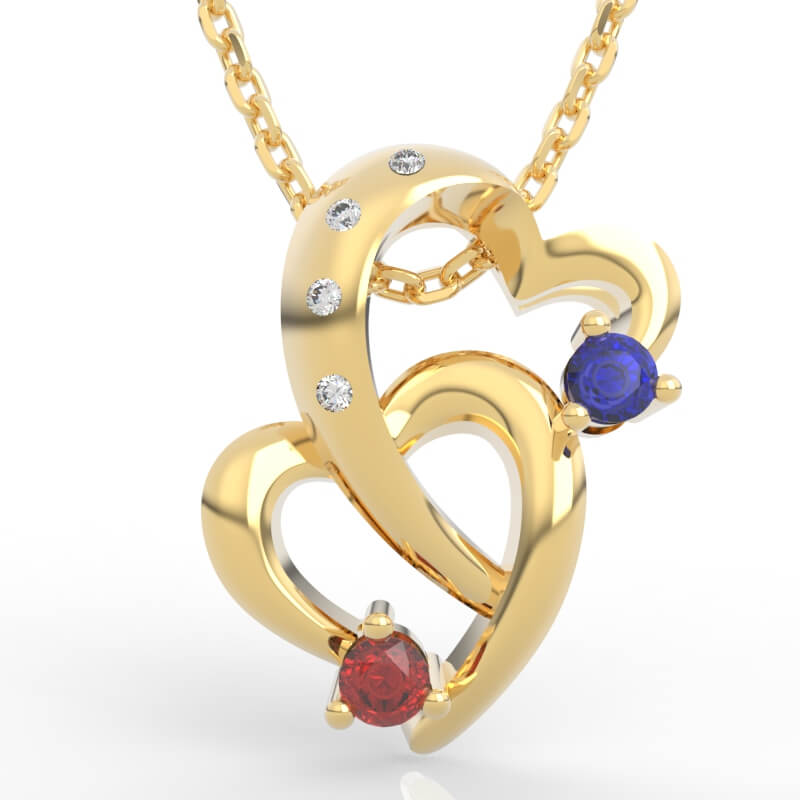

Q: Can the accent stones be substituted with colored gemstones instead of diamonds?
A: Yes. The two prong-set accent positions accommodate colored gemstones such as ruby or sapphire, supporting birthstone or personalized production variants.
