Casting Ready Pavé Bar Pearl Drop Pendant CAD | 12-Stone Single Row 8mm Pearl

Description

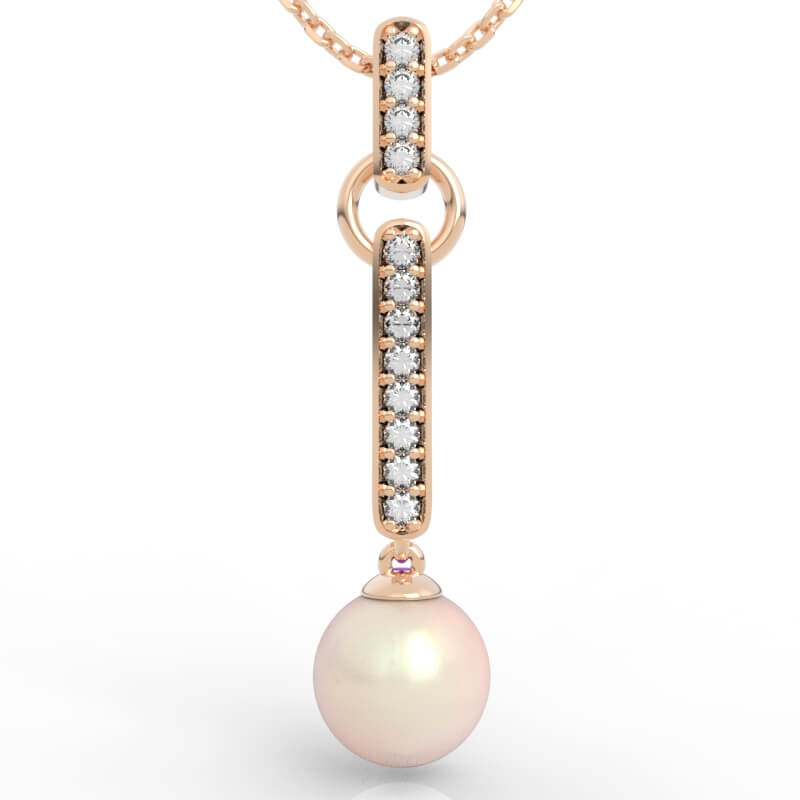

This casting ready pavé bar pearl drop pendant CAD model is structured as a two-component system: a pavé-set rectangular bar body with integrated pearl cup mount at base, and a short pavé bail cap connected to the bar via a plain polished jump ring. The single-row linear pavé layout — 12 × 1.6mm round brilliants stacked vertically along the bar — represents the most setting-efficient diamond configuration in the pendant category. The jump ring articulation between bail and bar allows independent component casting and adds a subtle movement element to the finished piece.

At 1.63g–2.55g across the full gold alloy range and 1.47g in 925 Silver, this pendant delivers the lowest metal consumption of any pearl pendant CAD in the production lineup. Full multi-alloy weight data across all 13 alloys supports direct factory costing from silver entry-price through platinum luxury positioning — from a single casting-ready CAD file.

Casting Ready Pavé Bar Pearl Drop Pendant CAD — Production Analysis

• Casting Readiness: Two-component casting unit — (1) pavé bar body with pearl cup mount base; (2) pavé bail cap. Connected via standard polished jump ring. No secondary soldering required on main body.
• Stone Setting Difficulty: Low — 12 × 1.6mm round brilliants in a single straight-row linear layout on flat bar surface. Most accessible pavé setting configuration in the pendant category; suitable for standard production setter.
• Polishing Accessibility: Low — smooth rounded bar ends and flat side surfaces polish efficiently. Jump ring and pearl cup mount are standard finishing components requiring no special tooling.
• Mass Production Suitability: Very High — minimal metal consumption, 12-stone single-row setting, two-piece casting structure, and standard jump ring assembly make this ideal for high-volume scalable batch production.
• Printability: Very High — slender bar geometry with minimal surface complexity prints cleanly at standard DLP/SLA resolution. Sub-0.13g wax CNC weight minimizes resin material cost per unit.
• Wax CNC Weight: 0.13g (manufacturing reference only — not finished metal weight).
• Recommended Metals: 14K Gold (YG/WG/RG), 18K Gold (YG/WG/RG), 10K Gold (YG/WG/RG), 22K Yellow Gold, Platinum (PLAT/PLAT RU), 925 Silver.

Market Fit Analysis

• US Market Fit: Very Strong — minimalist pavé bar pearl drop pendant is high-demand in the US everyday fine jewelry and gifting market; low metal weight enables competitive $150–$450 retail pricing across silver-to-14K gold alloys.
• Etsy Compatibility: Very High — dainty bar pendant with pearl drop is a top-performing Etsy jewelry format; low production cost supports strong seller margin at mid-range Etsy price points.
• TikTok Jewelry Potential: High — slender vertical silhouette with pearl drop films well for short-form jewelry content; low retail price point supports TikTok impulse-purchase conversion.
• Pinterest Visual Appeal: High — minimalist bar pearl pendant is consistently discoverable across dainty necklace, bar pendant, pearl drop, and minimalist jewelry Pinterest boards.
• Commercial Flexibility: Very Strong — pearl cup mount supports white, pink, lavender, peach, and champagne pearl variants; 925 Silver version enables budget entry-price SKU alongside gold and platinum offerings from one CAD file.

Product Specifications

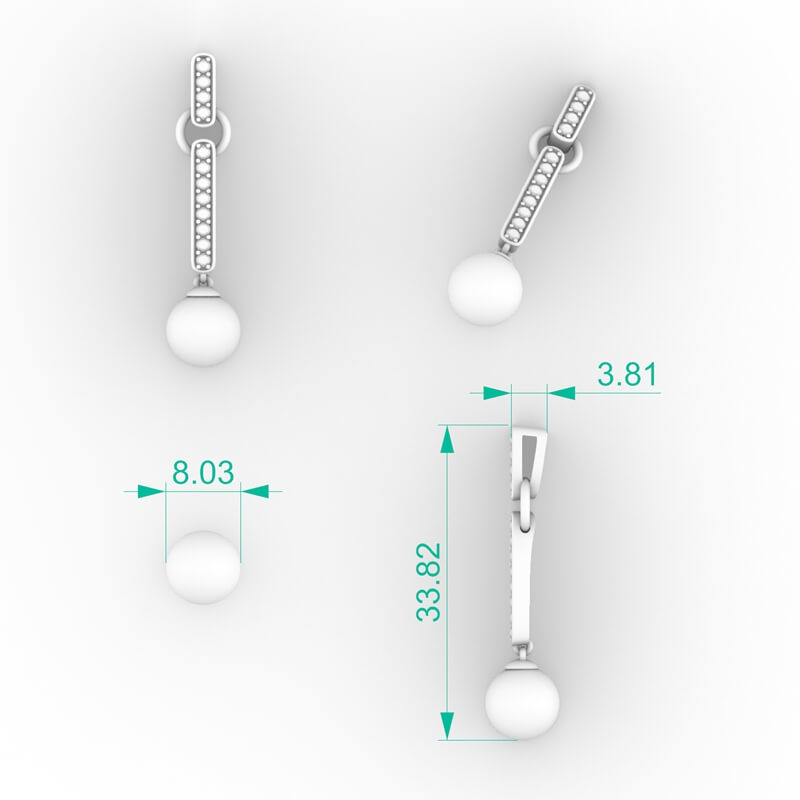

Dimensions	8.03 mm (0.316″) W × 33.82 mm (1.332″) H × 3.81 mm (0.150″) D
Pearl Size	8mm round — suspended cup mount at base of pavé bar body
Stone Details	12 Round Brilliant Diamonds 12 × 1.6mm (single-row linear layout) Total: 0.18 CT
Stone Layout	Single-row vertical pavé bar body + pavé bail cap (top)

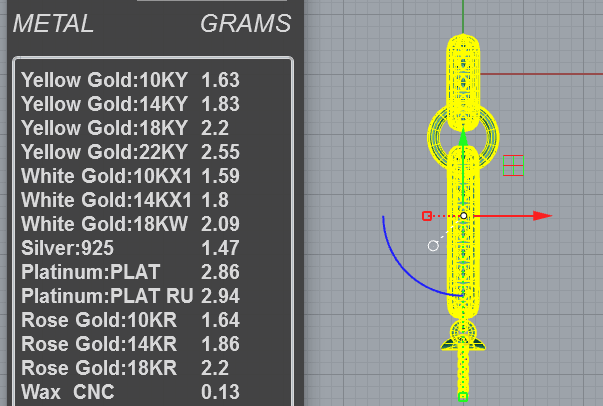

Metal Weight	10K Gold (YG/WG/RG): 1.63g / 1.59g / 1.64g 14K Gold (YG/WG/RG): 1.83g / 1.80g / 1.86g 18K Gold (YG/WG/RG): 2.20g / 2.09g / 2.20g 22K Yellow Gold: 2.55g Platinum (PLAT / PLAT RU): 2.86g / 2.94g 925 Silver: 1.47g
Wax CNC Weight	0.13g (manufacturing reference only — not finished jewelry weight)
Assembly	Two casting components — bar body + bail cap — connected via standard polished jump ring
File Formats	3DM, STL, JCD
Compatible Software	Rhino 7+, JewelCAD 5.x
Manufacturing Method	Lost-wax casting, DLP/SLA resin printing, Wax CNC

Jewelry Costing: Calculate Costs with our Jewelry Calculator.

FAQ

Q: What makes this pavé bar pearl drop pendant CAD one of the most production-efficient pendant models available?
A: Three factors combine: 12-stone single-row linear setting (the simplest pavé configuration), sub-2g gold metal weight across all karat ranges, and a two-component casting structure with standard jump ring assembly. Per-unit labor and material costs are among the lowest in the pearl pendant category while maintaining a commercially strong retail silhouette.

Q: Can the jump ring be replaced with a fixed solder connection for higher-durability retail applications?
A: Yes. The jump ring connector between bail cap and bar body can be soldered closed post-assembly for added security, or the CAD file can be modified to integrate a fixed connector link. The articulated jump ring version is the standard production configuration and provides a subtle movement element valued in fashion jewelry retail.

Q: How many pearl color and size variants can be offered from this single casting ready CAD file?
A: The cup mount at the bar base accommodates standard 8mm round pearls in all color variants — white, pink, lavender, peach, and champagne — without any CAD modification. Each pearl color combined with each alloy option creates an independent retail SKU from a single production file, enabling broad catalog expansion at minimal additional CAD investment.
