Twisted Ribbon Pearl Pendant CAD Model | 7.5mm Pearl, 12 Diamond Pavé

Description

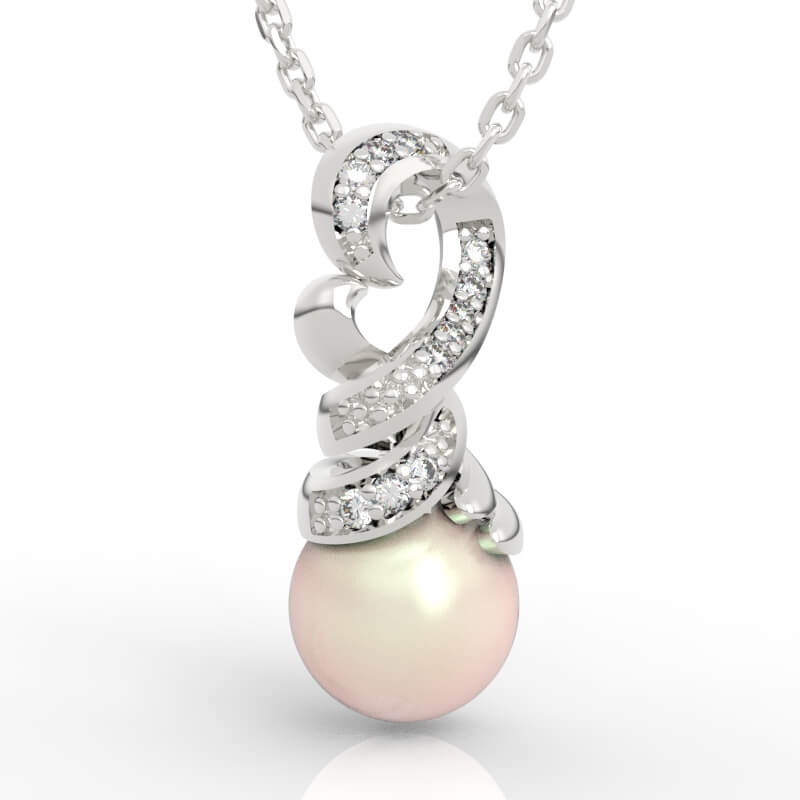

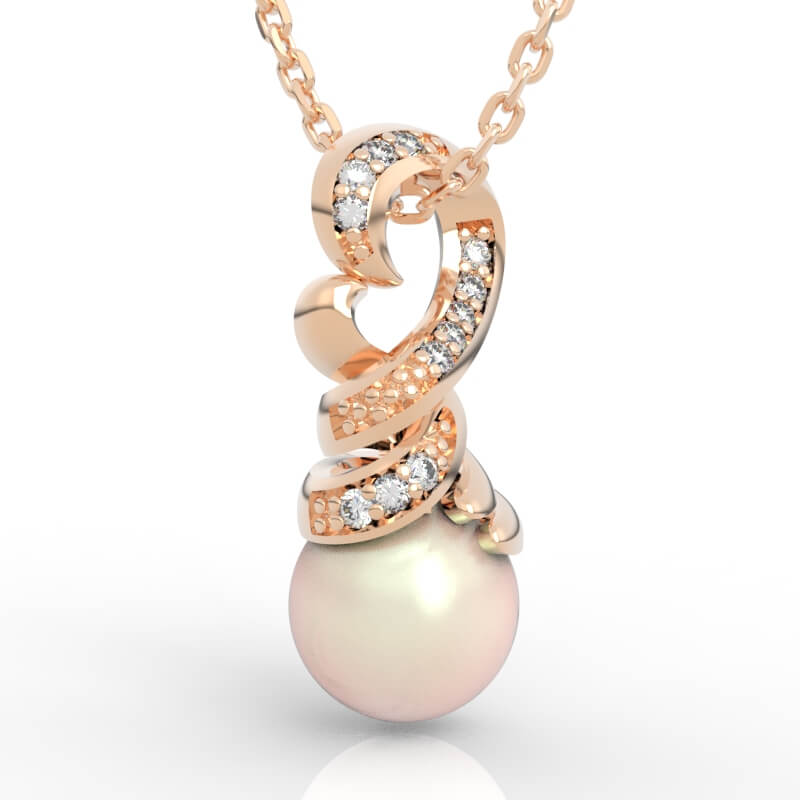

The twisted ribbon pearl pendant CAD model features a compact double-loop helix ribbon spiral cap descending into a partial cradle pearl drop seat. The ribbon arms form an open asymmetric spiral with dominant negative space between loops — a single-row linear micro pavé runs along the outer upper ribbon arm (12 × 1.2mm round diamonds, 0.072 CT). An integrated bail loop at the top of the spiral eliminates the need for a separate bail component. Total height: 19.72mm — compact for everyday wear retail positioning.

Single-piece casting geometry with no assembly or interlocking parts. Wax CNC reference weight: 0.13g (manufacturing reference only) — confirming ultra-lightweight open frame construction with minimal metal consumption per unit. The twisted ribbon pearl pendant CAD model is compatible with 10K–22K gold (YG/WG/RG), Platinum (PLAT/PLAT RU), and 925 Silver. File formats: 3DM, STL, JCD.

Production Analysis — Twisted Ribbon Pearl Pendant CAD Model

• Casting Readiness: High — single-piece geometry with clean metal flow path; integrated bail loop eliminates separate component assembly
• Printability: High — DLP/SLA resin compatible; open spiral structure with adequate ribbon wall thickness; clean wax print quality recommended for inner loop detail retention
• Stone Setting Difficulty: Low — 12 uniform 1.2mm stones in a single linear row along one ribbon arm; fastest possible setter workflow for a pavé pearl pendant structure
• Polishing Accessibility: Low-Medium — outer ribbon arm surfaces fully accessible; inner spiral loop gap and pearl cradle base require hand tool access
• Mass Production Suitability: Very High — ultra-lightweight frame with minimal stone count produces one of the lowest combined material and labor costs in the pearl pendant CAD category
• Repair Friendliness: Excellent — open frame structure with minimal stone count allows full prong and stone access without frame disassembly
• Recommended Metals: 14K Gold (YG/WG/RG), 18K Gold (YG/WG/RG), 925 Silver, Platinum (PLAT/PLAT RU)

Market Fit Analysis

• US Market Fit: Strong — compact 19.72mm height and lightweight open spiral frame suit contemporary US everyday pearl jewelry and minimalist fine jewelry retail segments
• Etsy Compatibility: High — twisted ribbon spiral silhouette differentiates from standard solitaire and bail-drop pearl pendants; strong boutique listing identity for pearl jewelry sellers
• TikTok Jewelry Potential: Medium — compact size photographs well in close-up content; helix ribbon detail visible at standard product video scale
• Pinterest Visual Appeal: High — flowing feminine spiral suits contemporary pearl jewelry, minimalist fine jewelry, and bridal gift discovery boards
• Commercial Flexibility: Strong — pearl drop seat supports white, pink, lavender, and black pearl color variants from a single production-ready CAD file; lowest-cost multi-alloy SKU expansion structure in this pearl pendant series

Product Specifications

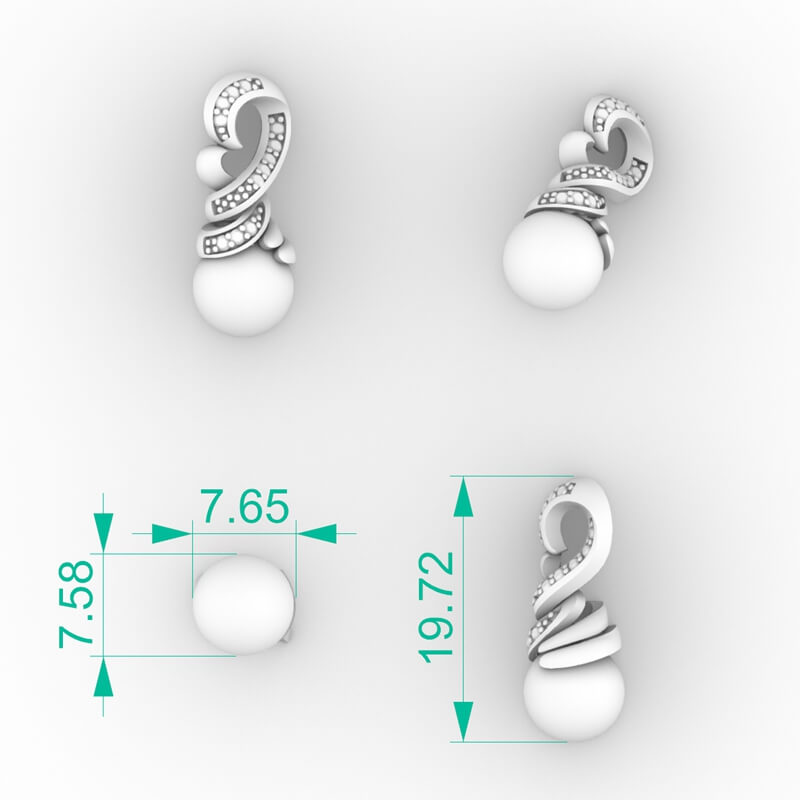

Dimensions	19.72 mm (0.776″) H × 7.65 mm (0.301″) W × 7.58 mm (0.298″) D
Pearl Seat	7.5mm round pearl (partial cradle wrap at base of ribbon spiral)

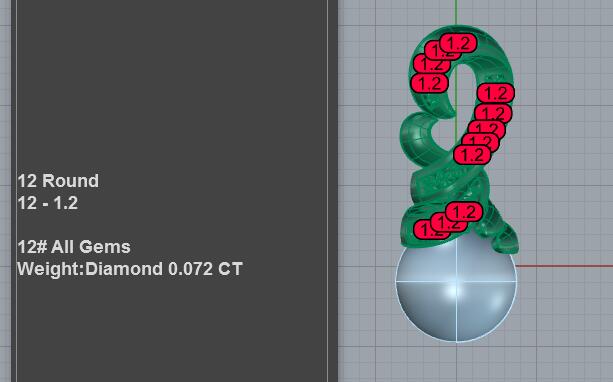

Stone Details	Round diamonds, 12 stones total 12 × 1.2mm round (uniform, single row) Total diamond weight: 0.072 CT

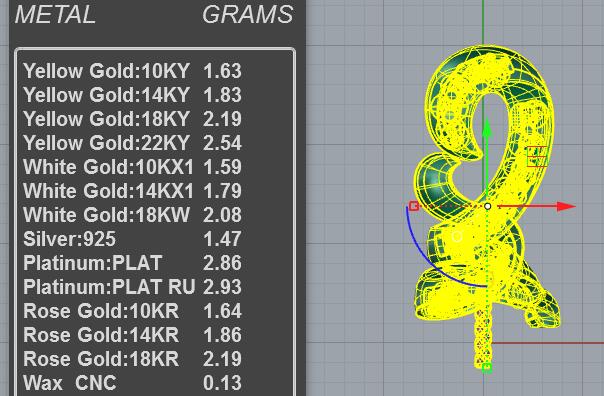

Metal Weight	10K Gold (YG/WG/RG): YG 1.63g / WG 1.59g / RG 1.64g 14K Gold (YG/WG/RG): YG 1.83g / WG 1.79g / RG 1.86g 18K Gold (YG/WG/RG): YG 2.19g / WG 2.08g / RG 2.19g 22K Yellow Gold: 2.54g Platinum (PLAT / PLAT RU): 2.86g / 2.93g 925 Silver: 1.47g
Wax CNC Weight	0.13g (manufacturing reference only — not finished jewelry weight)
Setting Style	Micro pavé — single-row linear along outer upper ribbon arm only
Frame Structure	Open double-loop helix ribbon spiral; integrated bail loop; partial cradle pearl drop seat
File Formats	3DM, STL, JCD
Compatible Software	Rhino 7+, JewelCAD 5.x
Production Method	DLP/SLA resin printing, lost-wax casting

Jewelry Costing: Calculate production costs with our Jewelry Pricing Calculator.

FAQ

Q: How does the integrated bail loop on this twisted ribbon pearl pendant CAD model affect production workflow compared to standard separate bail designs?
A: The integrated bail loop casts as part of the main frame in a single piece, eliminating the separate bail soldering step entirely. This reduces post-casting assembly time and removes a potential failure point in the production chain — particularly useful for high-volume batch casting runs.

Q: Is the partial cradle pearl seat structurally secure enough for retail pearl pendant production, or does it require a prong or bezel addition?
A: The partial ribbon wrap cradle provides sufficient lateral retention for standard pearl glue-setting workflows used in production pearl jewelry. For high-movement or active-wear retail collections, a small additional prong or bezel lip can be added in Rhino or JewelCAD without altering the ribbon spiral geometry.

Q: What is the realistic per-unit metal cost advantage of this twisted ribbon design compared to heavier pearl pendant CAD models?
A: At 1.83g in 14K yellow gold, this model uses approximately 60–65% less metal than a standard pavé-frame pearl pendant at 4–5g. Combined with the 12-stone setting count versus 40–56 stones in comparable designs, the total material and labor cost per unit is substantially lower — making it well suited for entry-level fine jewelry retail price points.
